ggmodel

A collection o functions to plot R base model objects with ggplot2

How to install

To install the ggmodel run the following line:

remotes::install_github("wilsonfrantine/ggmodel")

A simple example

library(ggmodel)
data(mtcars)

m <- glm(mpg ~ wt + hp, data=mtcars, family = "gaussian")

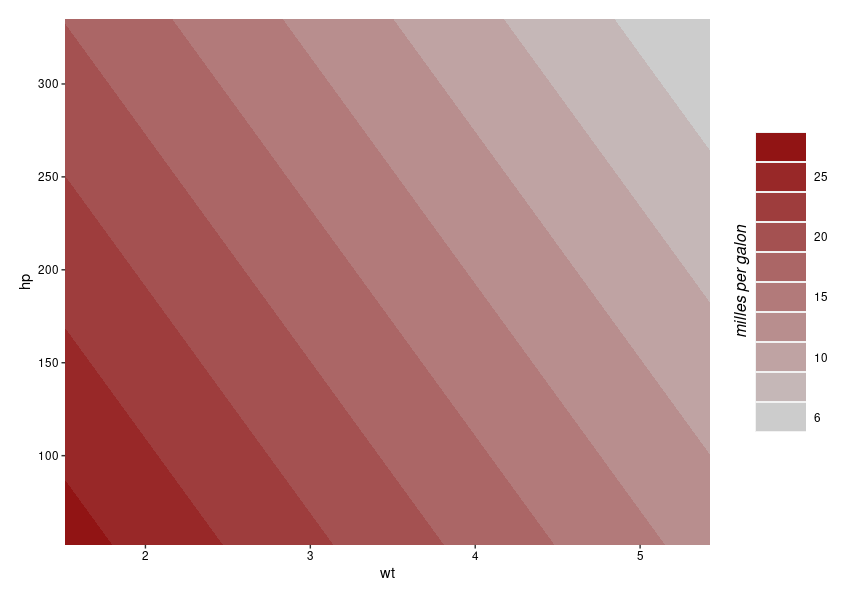

mPlot <- ggsurface(m, x.var = "wt", y.var = "hp",
           legend.title = "milles per galon", high.col = "darkred",
           round.legend = 0)

mPlot

Adjusting aesthetics

As a ggplot2 object, you can change wherever you want in the graph with ggplot2 sintaxe.

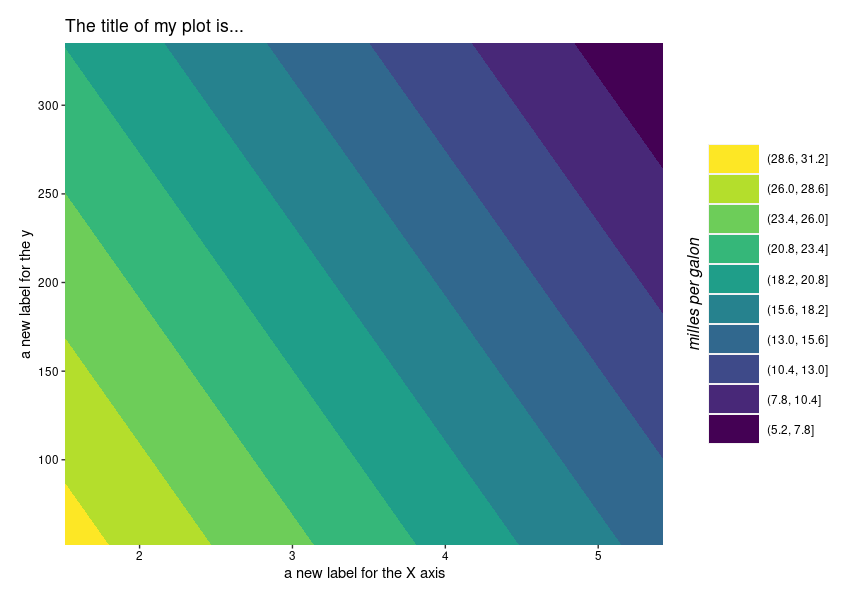

mPlot2 <- mPlot +
           ggtitle(label= "The title of my plot is...") +
           labs(
                x = "a new label for the X axis",
                y = "a new label for the y",
                fill = "a new label for the legend"
                ) +
           scale_fill_viridis_d() # a new color scale.

mPlot2

Creating a composition

One of the greatest things in ggplot2 is the variaty of possibilities. There are several packages to do almost anything with these plots.

One of my favorits is the patchwork package ( install.packages("pacthwork") ). This package can create composition of different plots, so…

library("patchwork")

mPlot+ggtitle("A") + mPlot2+ggtitle("B")

Disclaimer

At the moment, the package is very prototype. It just have one function for plotting multiple lm or glm surfaces ggsurface()

To get help try

?ggsurface

Any crash, mail-me: wilsonfrantine@gmail.com

Have fun!
